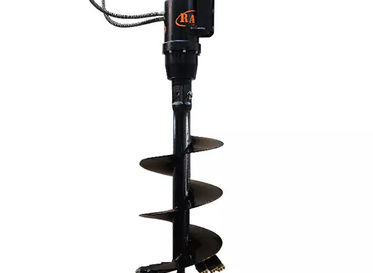

REA5000 EXCAVATOR EARTH AUGER
The gear box is made by RAY ATTACHMENTS. It is highly precise, low-noise and long-lasting. Rock bit is shaped like a cone, with sharp rock teeth. It has a strong drill so penetrating the ground wouldn’t be a problem — it is also suitable for hard soil, such as frozen soil. The tungsten bit is shaped like a fish tail with flat teeth. It is suitable for some relatively soft soil, such as loess, clay, backfill and so on.
Carrier
4.5～7 T
Torque
≤5056 N.m
Pressure
240 Bar
Oil Flow Range
38～76 l/min
Rotary Speed
29～58 rpm
Hydraulic Hose
1/2 Inch
Output Shaft
Ф75 mm
Unit Weight
108 Kg
Unit Height
780 mm
Unit Max.Dia.
269 mm
Auger Series
S5 mm
Auger Length
1500 mm
Auger dia. Range
150～600 mm
